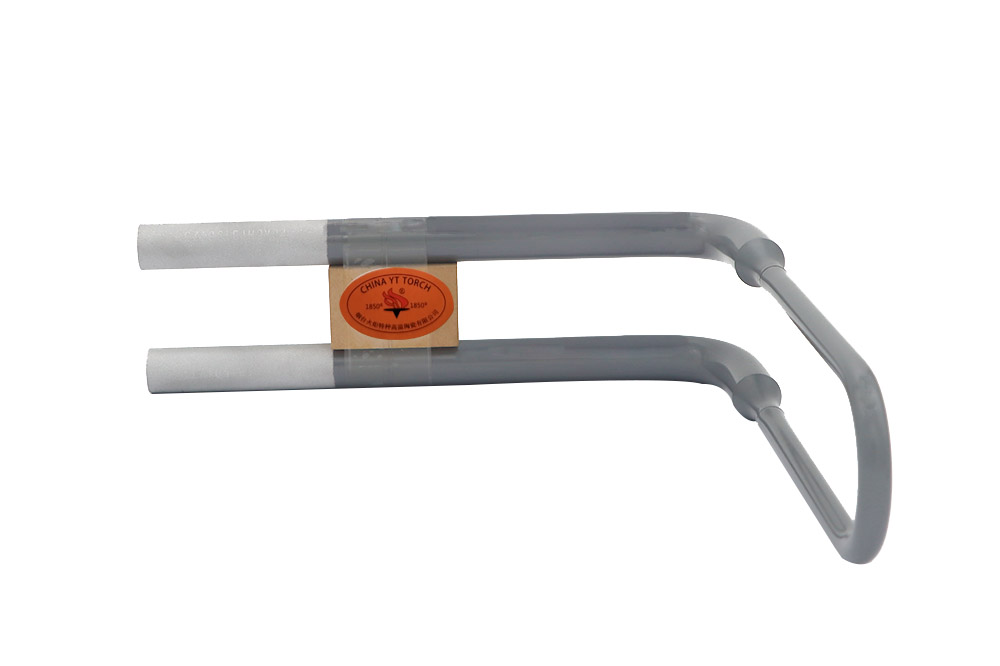

MoSi2 Heating Elements
Model:TC1850
Brand:YTTORCH
+ INQUIRY

Product Information

Product NameMoSi2 Heating Elements
Brand YTTORCH
Place Of OriginCHINA
Model NoTC1850
ShapeL Shape
SizeCustomizable
Heating Element temperature
(Air Environment)
1850℃
Features           High compactnessand purity;
           The temperature resistance degree improves
           and it canbearlarge surface load
Application RangeDental materials (MgO,
 Y₂O₃and ZrO₃)
 sintering


Product Advantages
Appearance:Good appearance without cracks and obvious scratches
Diameter:The uniform diameter is favorable for providing uniformheating fiel
Protective Layer:Protective Layer is compact and good,not easay to fall off
Welding Spot:Welding Spot is firm which has strong impact resistance and is not easy to break
Bending:The geometry of the bending part is accurate
Density:High density, higher conductivity, faster heating, lower power consumption, help save production cost
High tenacity :The product is shaped in hot-working process, better tenacity , can meet more customized needs
High Temperature Strength:Good high temperature strength, can bear higher surface load in high temperature environment, not easy to get out of shape
Purity:High purity. TC1900, TC1850 type is especially suitable for high-end dental furnaces and lab electric furnaces
Temperature Resistance:High temperature resistance, not easy to overheat damage
ISO9001 quality control system and professional technical team to ensure stable quality
Processing standards
Product Standard specifications
Diameter(mm) φd(hot zone)/ φC(cold zone)

shape

length(mm) Le(hotzone)/ Lu(cold zone) a(mm) g(mm) f(mm) h(mm)  n(mm)

Standard

Minimum

Standard

Minimum
3/6

U,L ,W or customized

customized 25  12  15  30  10  40  35
4/9

U,L ,W or customized

customized 25  15  20  30  10  50  45
6/12

U,L ,W or customized

customized 50  25  25  45  15  90  70
9/18

U,L ,W or customized

customized

60  35  32  75  20  135  110
12/24

U,L ,W or customized

customized

80  50  40  100  35  / /

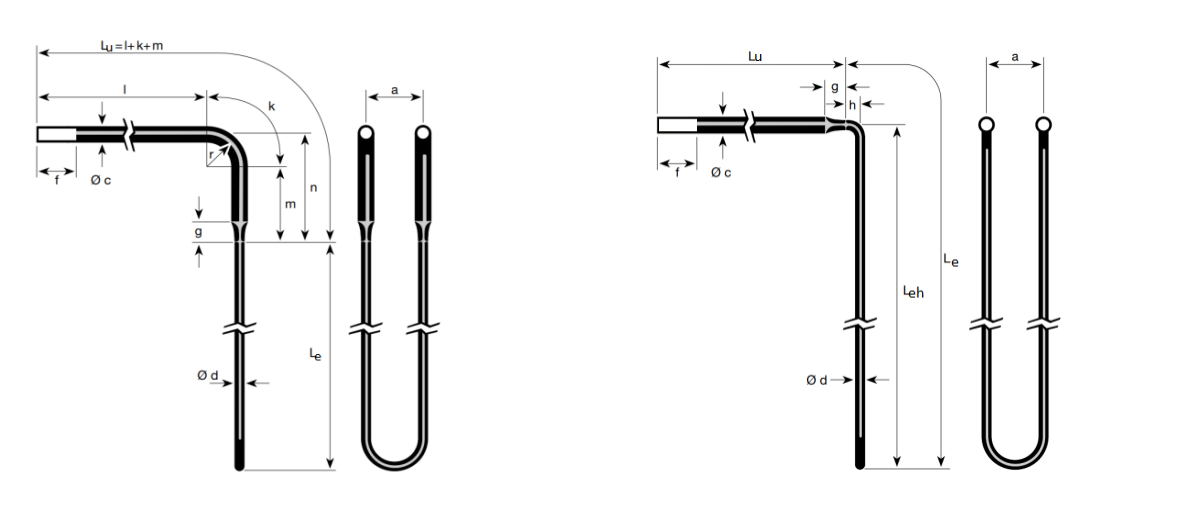

MoSi2 Heating Element Lu bent 90° measuementMoSi2 Heating Element Le bent 90° measuement

Technical data
Physical Properties:
Product Type Density-g/cm3 Bending strength under room temperature-MPa Hardness-GPa Compression Strength-MPa Water Absorption-% Thermal elongation-%
TC 1850 6.6±0.1 460 11 >1500 ≤0.2% 4
Chemical Properties:
MoSi2 Heating Element has the ability to withstand oxidation at high temperatures. This is due to the formation of a thin and adhesive protective layer of quartz glass (SiO2) on the surface. When the element temperature over 1700℃, SiO2 protective layer which melting point is 1710℃ was fused, and because of the surface tension, it fused into drops, which is useless. However, when element continue working in oxidizing atmospheres, the SiO2 protective layer is spontaneously rebuilt. Notice: It is no good to use Molybdenum Disilicide Heating Element for Long-term within a range of 400-700℃, otherwise the element will be powdered by the strong low temperature oxidation.
Indicators in Different Atmospheres:
Atmosphere 1700Type 1800Type 1850Type 1900Type
Air 1700 1800 1830 1850
Nitrogen 1600 1700 1700 1700
Ar Ne Argon, Helium 1600 1700 1700 1700
Dry Hydrogen (dew point)-80℃ 1150 1150 1150 1150
Wet Hydrogen (dew point)-20℃ 1450 1450 1450 1450
Exogas(e.g. 10% CO2, 50% CO, 15%H2) 1600 1700 1700 1700
Exogas(e.g. 40% CO2, 20% CO) 1400 1450 1450 1450
Cracked and partially burnt ammonia(8%H2) 1400 1450 1450 1450
PACKING
Delivery
For small orders,the delivery time is1~3working days or 7 working days;For large orders or urgent orders,the delivery time can be negotiated. The product may be transported by by air, boat, railway, Express etc.
A/S
Within 7 days after receiving the product, Please confirm whether there is any damage on the outer packing and product . If If the product is damaged, send the photos or video about the damaged product and outer packing to us , We will provide you with the after-sales service.
ABOUT US
Dedicated and professional:Since 1998 ,Focus on the production of Mosi2 series products
Source factory:>13000㎡
Number of employees:>100
Annual production:>60T
Patented technology & ISO9001Certification(patent type: invention patent certificate,Patent number:ZL 99 1 12205.4 International Patent Main classification number: C01B 33/06 Independent patented technology
Technical support:Customizable
Customer service:Professional & effective
MOQ 1PCS:Treat every customer as a VIP guest
Fast Deliver: Timely delivery rate 100%
Worry-free After-sales:Excellent after-sales team
Export country: The United States,Europe,Japan, Korea, Southeast Asia etc.
